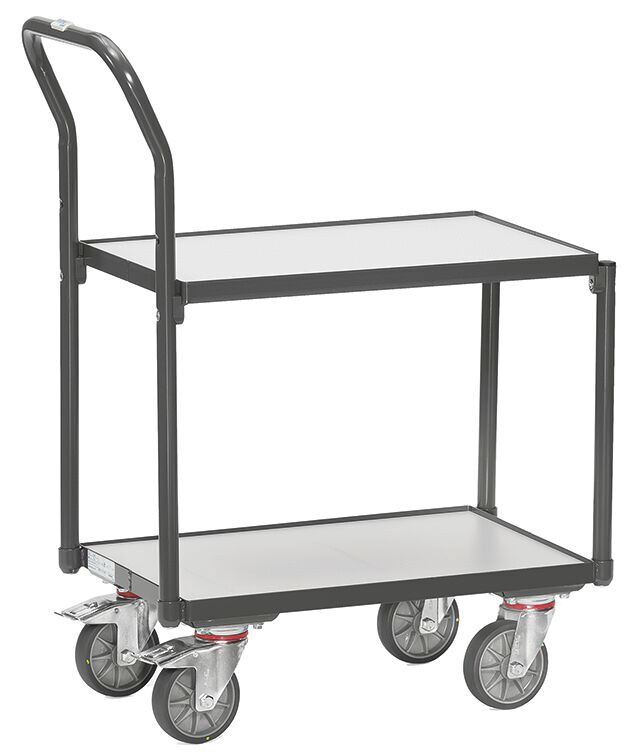

This is a two-tier serving cart with a metal frame and two shelves. The cart has four wheels and a long handle for pushing.
ESD Euro box trolley with push bar 610 x 410 mm
(Product No.: 091.935400-B)
This is a two-tier serving cart with a metal frame and two shelves. The cart has four wheels and a long handle for pushing.
Notice / Inquire

ESD Euro box trolley with push bar 610 x 410 mm

dpvlink:
20572
Depth :
747 mm
Width :
414 mm
Height :
970 mm
Version:
with push handle
Properties:
Further product information

chevron-down
Delivery time! Delivery time!
379,60 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD Euro box trolley with push bar 610 x 410 mm

The Fetra ESD Euro container dolly with push handle and dimensions of 610 x 410 mm is specifically designed for the transport of Euro containers (600 x 400 mm). This model features electrostatically conductive wood-based panels according to DIN 68765, which are equipped with a 7 mm high edge. The robust, powder-coated steel construction in dark grey (RAL 7015) ensures durability and stability.
The dolly has a total load capacity of 250 kg, with the upper level able to carry up to 100 kg. The dimensions are 746 x 415 x 970 mm (LxWxH) with a loading area of 605 x 408 mm. The shelf spacing of 400 mm significantly facilitates loading and unloading.
Four swivel casters with a diameter of 125 mm and TPE-ESD tires, including two with brakes according to EN 1757-3, provide safe and quiet mobility. The surface resistance is between 10^5 and 10^7 Ω, making the roller ideal for ESD-sensitive areas.
Depth
Depth
747 mm
Width
Width
414 mm
Height
Height
970 mm
Version
Version
with push handle
Wheel Ø
Wheel Ø
125 mm
Color
Color
dark grey
Loading bed
Loading bed
605 x 408 mm
Shelf height
Shelf height
400 mm
Conductivity
Conductivity
dissipative
Surface resistance Rs
Surface resistance Rs
105 - 107 Ω
Material
Material
steel
Tires
Tires
TPE / ESD
Load capacity
Load capacity
250 kg
Weight
Weight
22 kg
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 366
Complete Catalog 2023 - 2024

Product Family

ESD storage trolley

The ESD Euro box trolley is a robust and practical solution for the safe transportation of Euro boxes (600 x 400 mm). Equipped with two electrically conductive platforms and a sturdy, powder-coated steel construction in slate gray (RAL 7015), it meets the highest standards of functionality and safety. The TPE ESD tires enable low-noise, energy-saving transport, even with heavy loads.

  • Two platforms: Electrically conductive wood-based panels in accordance with DIN 68765, with 7 mm high edge
  • Optimum spacing: Clear shelf spacing of 400 mm for convenient loading and unloading
  • Safe mobility: Four swivel castors with TPE ESD tyres, two of which have brakes in accordance with EN 1757-3
  • High stability: Powder-coated frame in slate grey (RAL 7015) for long durability
  • Easy transportation: low-noise operation and minimal effort required thanks to precision grooved ball bearings

Ideal for use in ESD-sensitive areas, with a high level of comfort and safe handling.


Article image
Article description
ESD
Depth
Width
Height
Version
Price
Compare

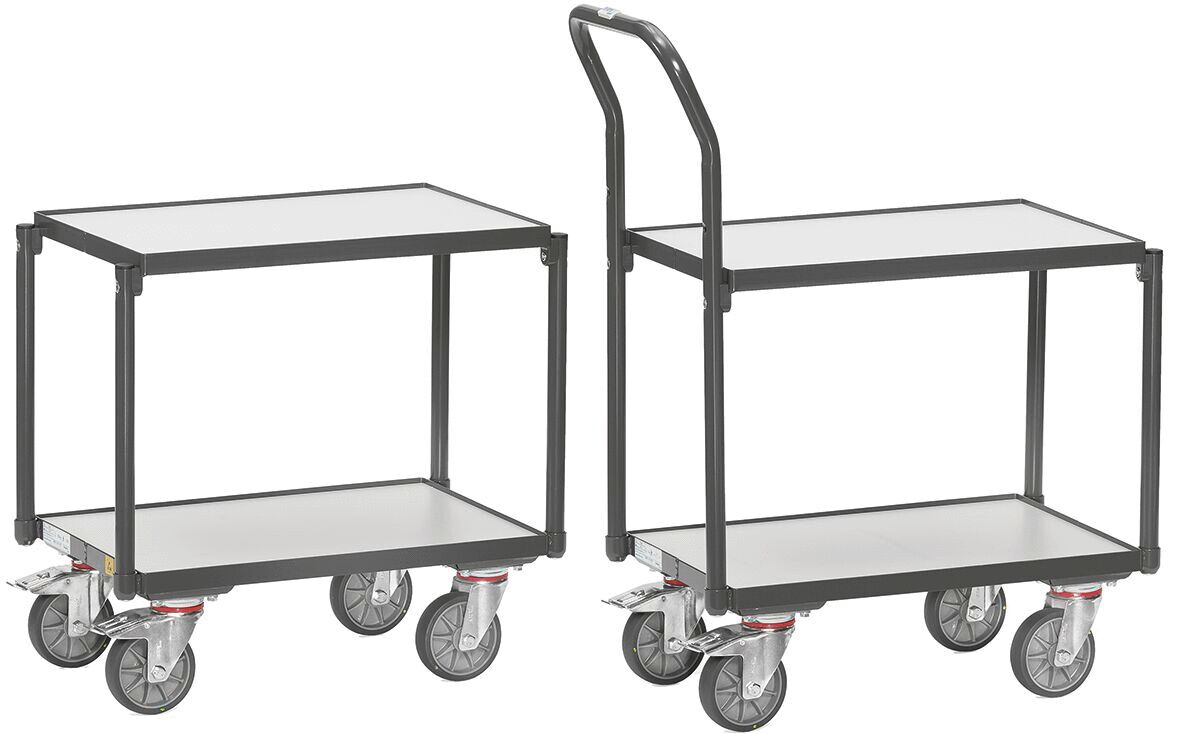

091.93540 - ESD Euro box trolley 610 x 410 mm
091.93540
ESD Euro box trolley 610 x 410 mm
677 mm
414 mm
639 mm
without push handle
348,20 EUR
091.935400-B - ESD Euro box trolley with push bar 610 x 410 mm
091.935400-B
ESD Euro box trolley with push bar 610 x 410 mm
747 mm
414 mm
970 mm
with push handle
379,60 EUR
